RUBIN WP-MF

Hydrant meter DN 80

AMBILL® 36

With display, Battery >10 years

AMBILL® pocket

Configuration and meter reading

AMBILL® pocket Professional

Configuration and meter reading

AMBILL® aquatarif XL

Practical and competent meter data readout with evaluation

AMBUS® UniMod

Universal meter modem range which can be fitted on rails for GSM, GPRS and TCP/IP connections

AMBILL® 230 CS

Without display
230 V 50 Hz

CALEC® MB

Heat calculators

RUBIN SMQ

For horizontal installation DN 50 – 100

RUBIN WPDK

DN 40 – 300

TOPAS PMH

Water meter for horizontal installation DN 20 – 40

AMBILL® 230

With display
230 V 50/60 Hz / 12…24 VDC /
15 VAC

RUBIN WPV

Composite meter for horizontal installation
DN 150

aquareader®

Optical readout oft he real data with RFID technology M-bus or CS-interface

AMTRON® S2

Compact heating and cooling meter with M-Bus or wireless M-Bus (Radio) according OMS-standard

RUBIN K02 Impulsgeber

Reed pulser

RUBIN K05/K06 Impulsgeber

Inductive NAMUR pulser per EN 19234

RUBIN OD 01/11 Impulsgeber

NAMUR opto-electronic pulser per EN 60947-7-5-6

SAPHIR® MPM7-I

Residential water meter DN 15, for horizontal or vertical installation, temperature range 0 – 90°C

SAPHIR® E

Residential water meter DN 15, electronic totalizer with integrated M-Bus interface

CALEC® ST

Heat calculators

tech preview

Plug-in computer module
Interfaces to building management systems: M-Bus, LON, Modbus, N2Open, BACnet MS/TP, KNX
Sliding data for standard refrigerants
Integrated power supply for flowmeters
Metrological approval according to 2014/32/EU (MID) and PTB K7.2 (cold, hot/cold combined)

CALEC® ST II

Multi-functional thermal energy calculator for district heating and building technology

tech preview

Multi-function display with plain text and selectable language (D, E, F, I)
Medium temperature -50...550°C (approval 1...200°C)
Temperature difference 0...190K (approval 3...199K)
Integrated power supply for flowmeters
Metrological approval according to 2014/32/EU (MID) and PTB K7.2 (cold, hot/cold combined)

CALEC® energy master

Multi functional thermal energy calculator for district heating and building technology

tech preview

DN125...250, PN16
TFluid = 0 - 80 °C
No moving parts
Low pressure loss
Approval: EN 1434 and PTB K7.2

AMFLO® MAG Basic

Electromagnetic compact flowmeter with integrated electronics for energy measurement
in industrial and commercial buildings

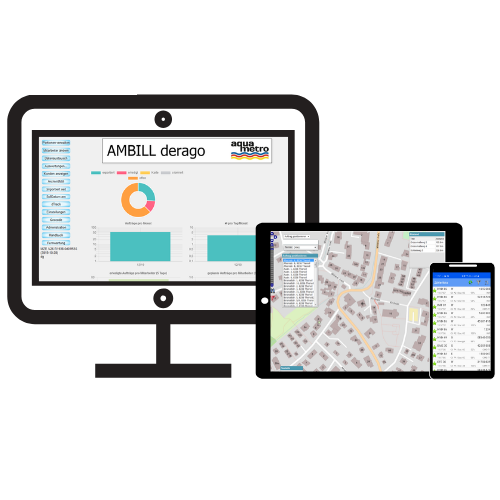

AMBILL® derago

Mobile meter reading

tech preview

Innovative WALK-BY & DRIVE-BY reading of transmitting heating and cooling counters as well as water and gas meters.
Broad support of measuring devices from different manufacturers by using the open communication standard OMS.
AMBILL® smart Suite 2 fulfils specific requirements of energy supply companies as well as contracted meter reading companies.
It collects automatically all data relevant for billing from all meters.
AMBILL® smart Suite 2 combines three tools in one package: Smart Read, Smart Param, Smart Scan

AMBILL® smart suite 2

Meter reading as simple as that

tech preview

Fully web based solution (Application Service Provider Solution or local installation)
Fully automatic process – from meter reading to billing (paper or email)
Consumption based billing
Interface to automatic meter reading solutions
Interface to accounting systems

AMBILL® easy bill

Web based facility billing system

tech preview

Wireless receiver and software in accordance wM-Bus/OMS EN 13757-4
Device range of up to 100 m

AMBILL® easy reader

Reading wireless meters

tech preview

Remote meter reading for specified meter data
Graphical display of load profiles
Export of meter data to Edifact, MSCONS, ASCII or Excel format
Meter reading via : M-Bus, LONWorks, CL0 (CS), Radio
Transmission via : Telephone or GSM modem, Ethernet / Internet, RS232, Infrared interface, Mobile data recording (PDA)

AMBUS® Gate

Energy data management system for automated remote meter reading of electricity, gas, water and heat meters

tech preview

For use in combination with cold water meters aquabasic® and warm water meters TOPAS PMW-basic

aquadata® M-Bus

M-Bus and pulse transmitter

tech preview

M-Bus centre with integrated web server
For 20, 60, 120 or 250 M-Bus meters
Data logger with plug-in data memory
10/100 Base Ethernet
Transparent access to M-Bus

AMBUS® Link

Smart M-Bus data center for configuring, operating and monitoring M-Bus systems

tech preview

For use in combination with cold water meters aquabasic® and warm water meters TOPAS PMW-basic

aquapuls® / aquapuls® NAMUR

Open-Collector or NAMUR pulse output

tech preview

In combination with cold water meters aquabasic® PMK and warm water meters TOPAS PMW-basic
Used for the reading, analysis and monitoring of water consumption
High capacitiy of data storage
Events management (Number of day of failure, leakage)

aquatarif®

Recording, analysis and monitoring module

tech preview

Transmits data from meter every 8 to 16 seconds
M-Bus input for direct connection with M-Bus meters
Internal receiver aerial

aquaradio® smart M-Bus

Stationary readout in non-licensed 868 MHz frequency range

tech preview

Transmits every 8 to 16 seconds meter number, meter reading
For all meters with pulse generator or open collector output
Internal receiver aerial

aquaradio® smart Puls

Stationary readout in non-licensed 868 MHz frequency range

tech preview

Remote reading, M-Bus power supply and voltage converter for up to 20 or 60 meters
Integrated 230 V mains supply
For all meters according to EN1434-3
Autonomous M-Bus remote reading unit
Automatic data logger

AMBUS® Log Serie

M-Bus data logger for up to 60 M-Bus devices

tech preview

M-Bus data centre with integrated web server
Integrated level converter for up to 250 M-Bus users
LCD touch screen with plain text display
Robust, tested casing for any application
Optional data logger with slot-in memory card (Compact Flash)

AMBUS® Net

M-Bus data center with integrated web server

tech preview

Compact level converter for 20 or 60 meters
Opto-electronic interface, RS-232 or RS-485
Transmission rate up to 9600 baud
Protection against short circuits and overvoltages
European standard EN1434

AMBUS® Port

M-Bus level converter

tech preview

Integrated power supply for connected meters
Up to 250 M-Bus meters for each AMBUS® level converter
Data communication via RS 232, RS 485 and M-Bus repeater input
Simple M-Bus installation with 4-wire cable

AMBUS® ZS

Signal-converter

tech preview

Versions / Frequency band : 868,95 MHz or 434,475 MHz
Radio range : Up to 400 m depending on ambient conditions
Bluetooth specification : 2,4 GHz, version 1.1, class 2
Bluetooth range : Up to 10 m
Data transmission rate : 115,2 kbit/s

aquaradio® smart radio receiver

Radio receiver for mobile walk-by or drive-by meter reading

tech preview

Pulse collector with M-Bus interface
Signal input with M-Bus interface
External power supply 12...18 V AC or 12...24 V DC
Configuration using AMBUS® Win software

AMBUS® IS

Pulse collector

tech preview

Transformation from wireless M-Bus (EN 13757-4 / OMS) to wired M-Bus (EN 13757-3)
M-Bus output to allow direct connection to a central office
Internal receiver aerial

AMBILL® smart link

Wireless M-Bus Converter

tech preview

Data logger
Load profiles and reset values for each new month
Configuration and querying of measurement values directly within the device or via M-Bus
Complete configuration through M-Bus
M-Bus and RS232C interface

AMBUS® IC-M12

Pulse storage module

tech preview

Receives radio telegrams of 100/500 or 1000 meters, independent of media
Automatic ftp upload (push-mode) via GPRS and/or LAN interface
External or internal antennas

aquaradio® smart RDC Standard

Radio concentrator for fixed network solution 868 MHz

tech preview

Pt100 or Pt500 sensors
2-wire connection with 2.5 m fixed cable
Approvals according to Directive 2004/22/EC (MID)
Approvals according to PTB K7.2 (cold measurement / combined cold and heat measurement)

Temperature sensors PLC

2-wire cable temperature sensors for pocket mounting
